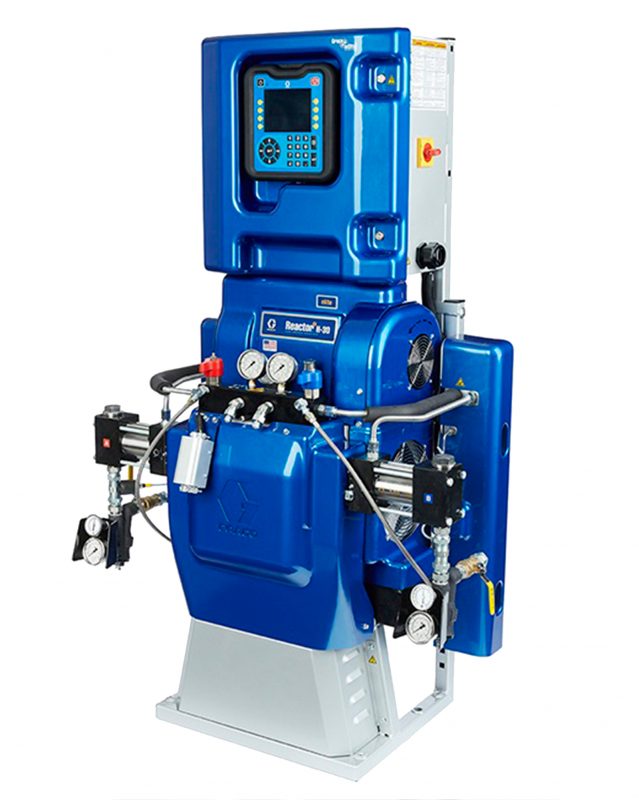

Reactor 2 H-30,H-40,H-50
Reactor 2 H-30,H-40,H-50
Call us for pricing and ordering 317.209.1111
Graco’s line of hydraulic Reactors brings increased yield and high output spraying. Ideal for in-plant OEM’s or applicators that spray at high volumes.
Reactor 2 stand-alone models are available in an H-30, H-40 and H-50.
- Compact footprint – more room in your spray rig
- Ergonomic design – easier to service
- Better spraying performance compared to traditional electric Reactor systems
- Troubleshooting made quick and easy with QR codes
- Advanced control modules
Technical Highlights
Maximum Working Pressure: 2000 psi (138 bar, 13.8 MPa)
Maximum Hose Length: H-30: 310 ft (94 m) H-40 & H-50: 410 ft (125 m)
Maximum Fluid Temperature: 190ºF (88ºC)
Output:
H-30: 28 lb/min (12.3 kg/min)
H-40: 45 lb/min (20 kg/min)
H-50: 52 lb/min (29 kg/min)
Weight:
H-30: 10 kW: 530 lb (240 kg), 15 kW: 556 lb (252 kg)
H-40 & H-50: 600 lb (272 kg)
Heater Wattage and Power Requirements:
H-30:
With 10.2 kW heater: 230V, 1-ph — 79A, 230V, 3-ph — 46A, 400V, 3-ph — 35A
With 15.3 kW heater: 230V, 1-ph — 100A, 230V, 3-ph — 59A, 400V, 3-ph — 35A
H-40:
With 15.3 kW heater: 230V, 3-ph — 71A, 400V, 3-ph — 41A
With 20.4 kW heater: 230V, 3-ph — 95A, 400V, 3-ph — 52A
H-50:
With 20.4 kW heater: 230V, 3-ph — 95A, 400V, 3-ph — 52A
Description
Reactor 2 H-30,H-40,H-50
Call us for pricing and ordering 317.209.1111
Graco’s line of hydraulic Reactors brings increased yield and high output spraying. Ideal for in-plant OEM’s or applicators that spray at high volumes.
Reactor 2 stand-alone models are available in an H-30, H-40 and H-50.
- Compact footprint – more room in your spray rig
- Ergonomic design – easier to service
- Better spraying performance compared to traditional electric Reactor systems
- Troubleshooting made quick and easy with QR codes
- Advanced control modules
Technical Highlights
Maximum Working Pressure: 2000 psi (138 bar, 13.8 MPa)
Maximum Hose Length: H-30: 310 ft (94 m) H-40 & H-50: 410 ft (125 m)
Maximum Fluid Temperature: 190ºF (88ºC)
Output:
H-30: 28 lb/min (12.3 kg/min)
H-40: 45 lb/min (20 kg/min)
H-50: 52 lb/min (29 kg/min)
Weight:
H-30: 10 kW: 530 lb (240 kg), 15 kW: 556 lb (252 kg)
H-40 & H-50: 600 lb (272 kg)
Heater Wattage and Power Requirements:
H-30:
With 10.2 kW heater: 230V, 1-ph — 79A, 230V, 3-ph — 46A, 400V, 3-ph — 35A
With 15.3 kW heater: 230V, 1-ph — 100A, 230V, 3-ph — 59A, 400V, 3-ph — 35A
H-40:
With 15.3 kW heater: 230V, 3-ph — 71A, 400V, 3-ph — 41A
With 20.4 kW heater: 230V, 3-ph — 95A, 400V, 3-ph — 52A
H-50:
With 20.4 kW heater: 230V, 3-ph — 95A, 400V, 3-ph — 52A
